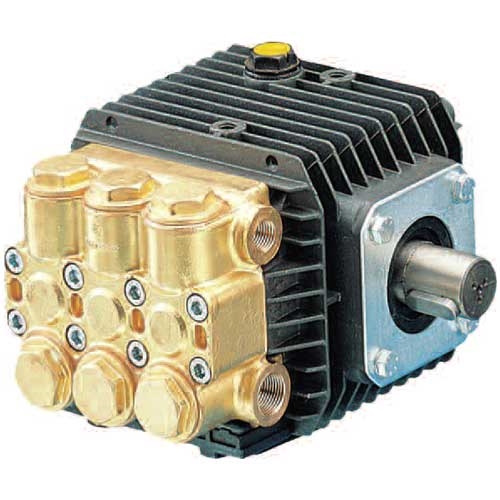

GENERAL PUMP TT941 Triplex Pressure Washer Pump

GENERAL PUMP TT SERIES TRIPLEX PRESSURE WASHER PUMP

24MM SOLID SHAFT

3.4 GPM | 1500 PSI @ 2800 RPM

FORGED BRASS MANIFOLD WITH EXCLUSIVE LIFETIME WARRANTY

INLET 3/8” FPT | OUTLET 1/4” FPT

PUMP RAILS NOT INCLUDED

COVERED BY GENERAL PUMP FIVE YEAR WARRANTY
FOR DETAILS CLICK: GP WARRANTY | PLUS LIFETIME ON THE MANIFOLD

AVAILABILITY: IN STOCK

TT Series 51, Triplex Plunger Pump, Solid Shaft – Forged brass manifold with an exclusive lifetime warranty. Heavy-duty tapered roller bearings and oversized connecting rods for maximum life. Max. Inlet Pressure: 125 PSI Max. Fluid Temperature: 165° F Inlet Port Thread: 3/8" - 19 BSP-F Discharge Port Thread: 1/4" - 19 BSP-F Shaft Diameter: .945 in./24 mm Pump Dimensions: 7.0" x 6.9" x 5.1" Max. Inlet Vacuum: 9 ft. water (7.9 in. Hg) Crankcase Oil Capacity: 11.2 oz. Use GP Series 100 Oil, Product Group: X

Plunger Pumps are designed for a wide variety of high pressure washing applications. They are constructed of die-cast bodies and feature a forged brass head. Internal components include special thick solid ceramic plungers for long life and durability. Precision cast cooling fins are anodized for maximum heat dissipation. Oversized tapered roller bearings and the precision supports assure proper shaft alignment and maximum life. Valve cages of special designed Ultra-Form provide positive seating and extended life. One-piece connecting rods are either a special alloy aluminum or bronze oversized for strength and load disbursement. These pumps are designed for gearbox , belt drive, or coupling drive systems, electric motor 182-184 frame driven systems, or gasoline engine driven systems.
