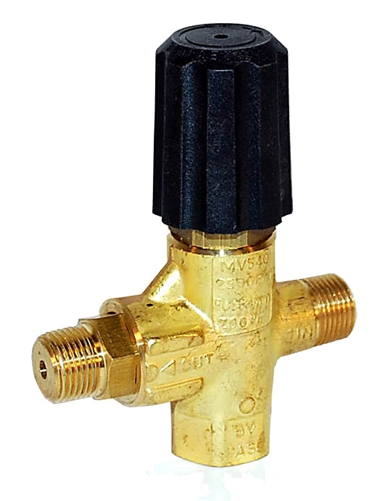

VR54-150 REGULATOR / UNLOADER BLACK

2175 PSI | 8.0 GPM | 194 F | FORGED BRASS BODY

BLACK KNOB

STAINLESS STEEL SEAT AND PISTON | 3/8” MPT INLET / 3/8" MPT OUTLET / 3/8" FPT BYPASS

AVAILABILITY: IN STOCK

The spray gun and unloader make up a two-part valve system that directs water into the bypass and back to the pump or float tank.  The spray gun shuts off the flow of water causing the unloader to re-circulate the water back into the inlet side of the pump.  This is called sending the water to bypass.  Pressure actuated unloaders are opened by the increase in pressure occurring when the valve in the spray gun is closed.  Flow actuated valves send the water into bypass when flow drops.

This is a pressure actuated model.
